The reinvention of the FM Transmitter
Wave Series of compact FM Transmitters is a synthesis of a forefront hardware design, combining state-of-the-art technology with great ease of of use, management and maintenance.
Wave transmitters integrate a comprehensive set of input interfaces with automatic input switch, as well as Stereo/RDS coders, , FSK ID generator, a Stereo Tool Audio Processor, a test tone generator, an audio monitor and MPX output.
Transmitters can integrate up to two Satellite/Terrestrial receivers (able to receive low symbol rate signals).
A patented FM isofrequency implementation allows transmitters to operate in SFN with very high performance.
The units integrate a local LCD display and keypad and can be remotely managed via web GUI and SNMP, with option for 3G/4G router with SMS capability, email client and analog/digital GPIO.
Among the main features
- Digital processing with DDS modulator

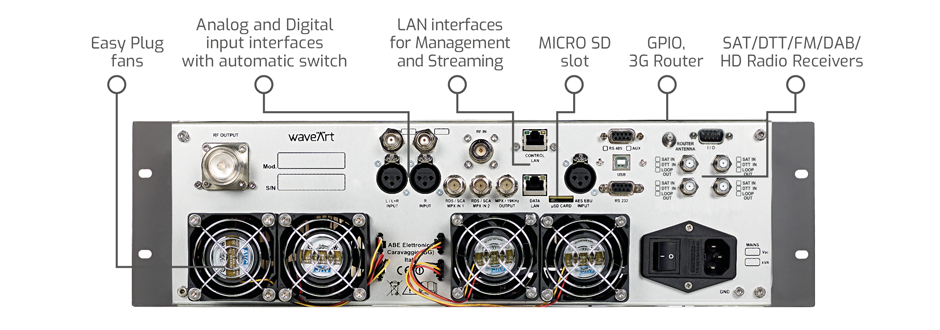

- Input: Analog mono/stereo, 2x analog MPX, AES/EBU, AES192, AES67, Web Radio receiver, FM/DAB/HD Radio tuner, digital MPX over IP, ASI, Micro SD card, SAT/DTT receiver (available in redundant configuration) and GPS
- Adaptive Efficiency Boost and Wave Plan functions
- Static and dynamic (UECP over IP) RDS coder
- Web server, event logger, SMS client, SNMP
Maintenance has never been so easy

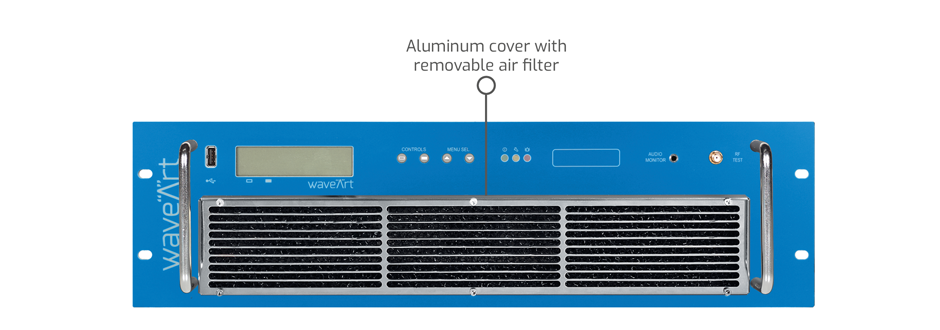

We know that power surges and dust constantly threaten your transmitters and so we implemented the best technology to make maintenance easier.

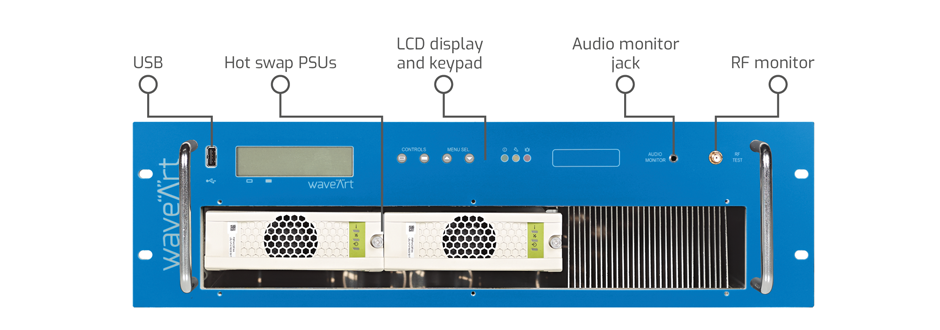

In case of a power supply failure, you don’t need to waste your time disassembling the unit. You can pull out the damaged PSU from the front panel in just few seconds, with no need to turn off the transmitter.
![]()
A penny saved is a penny earned
Developing strategies to increase sales to drive up profit and grow up the organization is the target of every CEO.
But you know that increasing sales is much more difficult and inconstant than reducing costs.
WaveArt transmitters, thanks to their typical 75% efficiency and exclusive features, work right by your side to minimize your running costs, thus freeing up resources. Switch on and start monetizing!
AEB
Adaptive Efficiency Boost
Using a proprietary algorithm that acts on the RF stages, Wave FM Transmitters are able to self-optimize the key parameters to achieve maximum efficiency without any retuning.
Wave Plan
Power scheduler
Using WavePlan you are able to fit your power consumption according to your audience. You can create daily and weekly plans, setting up start and stop times and output power level. You can even save and recall plans on different transmitters.
